- 20/30W Output Power
- Strong Power
- 100,000 Hours
- Long Working Life
- Power Consumption≤1KW
- Energy-saving
- Metal Plate
- light-weight and High Strength
- Industrial Designs
- independent R&D
- Intelligent Control
- Full-automation
Technical Parameter
| Wavelength | 1064nm |
|---|---|
| Laser power | 20W/30W |
| Marking Area | 100mm X 100mm |
| Max Marking Speed | 7000mm/s |
| Marking Depth | 0.01mm-4mm |
| Repeat Positioning Accuracy | 0.001mm |
| Min Character | 0.15mm |
| Min Line Width | 0.012mm |
| Adjusting power range | 0-100% |
| Spot Diameter | 0.012mm |
| Power Supply | 220V 10A 50Hz |
| Power Consumption | < 600W |
| Running Temperature | 0℃-40℃ |
| Overall Weight | 150KG |
| Machine Dimensions | 340mm x 120mm x 200mm |
| Overall Structure | Metal Plate |

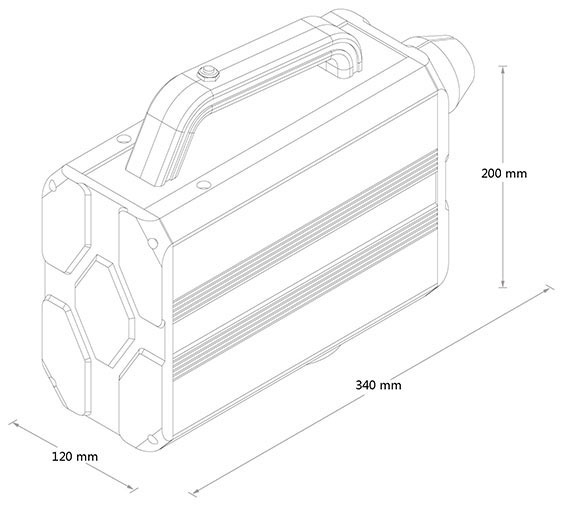

Size
length：120mm
width：340mm
height：200mm
Equipment Resolution
No content
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
