- 20W Output Power
- Strong Power
- 100,000 Hours
- Long Working Life
- 10 set
- Reader modules
- Intelligent Control
- Full-automation
- Germany FESTO
- pneumatic components
- Power Consumption≤1KW
- Energy-saving
Technical Parameter
| Production speed | 2500 ~ 6500 piece/hour |
|---|---|
| card size | 85.5mm x 54mm x 0.86mm |
| 标记范围 | 100 x 100mm |
| Marking Area | 7000mm/s |
| Power Supply | 220V 10A 50Hz |
| Laser power | 20W |
| Power Consumption | < 1000W |
| Running Temperature | 0-40℃ |
| Running Humidity | 5%-75% |
| Overall Weight | 800KG |
| Machine Dimensions | 1390mm x 770mm x 1820mm |
| Overall Structure | Metal Plate |

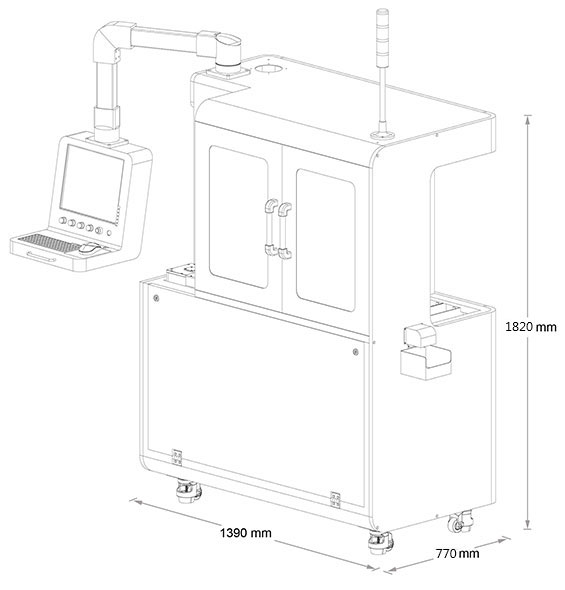

Dimensions
length：1390mm
width：770mm
height：1820mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
