- Liner diameter
- 33mm-118mm
- double-head structure
- high efficiency
- 20W Output Power
- Strong Power
- 100,000 Hours
- Long Working Life
- mistake proofing
- High quality marking
- Intelligent Control
- Full-automation
Technical Parameter
| Marking Area | 100mm X 100mm |
|---|---|
| Max. Marking Speed | 7000mm/s |
| Power Supply | 220V 10A 50Hz |
| Laser power | 20W |
| Power Consumption | < 1000W |
| Running Temperature | 0-40℃ |
| Running Humidity | 5%-75% |
| Overall Weight | 300KG |
| Machine Dimensions | 990mm x 750mm x 2130mm |
| Overall Structure | Metal Plate |

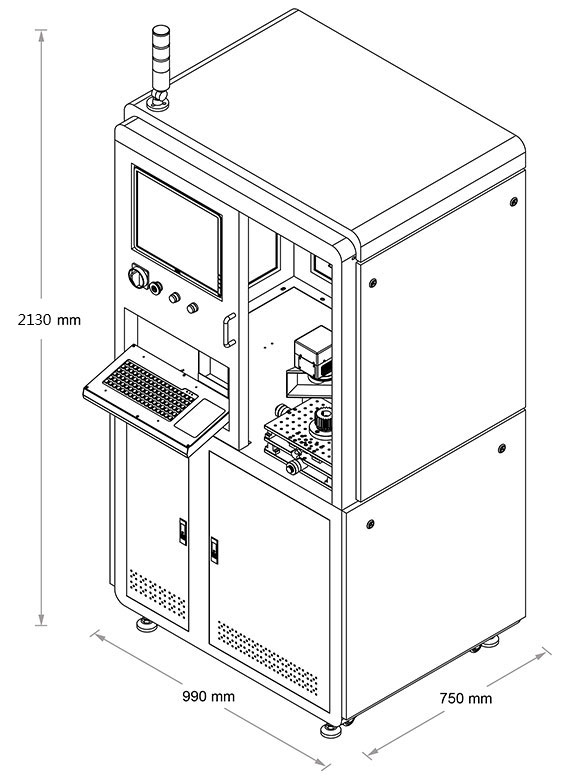

Dimensions
Length：990mm
Width：750mm
Height：2130mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
